KRAITEC® spezial

The versatile anti-slip mat

The anti-slip mat KRAITEC® spezial was developed to cover a wide range of safety requirements. The mats were designed with a kinetic friction coefficient μ of 0.80.

A selection of various material thicknesses offers very good maximum surface load values ranging from 125 to 200 t/m2, allowing exact adaptation to your individual load securing requirements.

Registered, protected colour coding:

For reliable and fast identification, KRAITEC® spezial features a colour coding system that is protected by German law. The red and white granulate colour particles distinguish KRAITEC® spezial.

As with all KRAITEC ® anti-slip mats, KRAITEC ® spezial can be re-used many times until they reach the replacement state of wear.



Technical data:

Special feature: Standard product for light loads

Material: Recycled rubber granules, bonded with polyurethane

Colour: protected product design: black with red and white colour particles

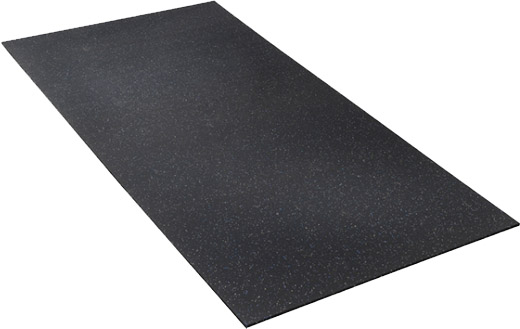

Dimensions panels: 2,000 x 1,000 mm

Thickness: 4 - 20 mm

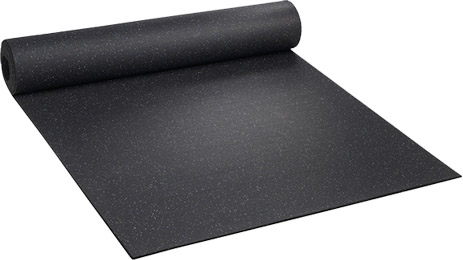

Dimensions rolls: 1,250 mm x length on request

Thickness: 4 - 20 mm

Max. permissible surface load:

(at max. 30 % compression according to VDI 2700 Sheet 15)

approx. 125 t/m² at 3 and 4 mm thickness

approx. 170 t/m² at 5 at 6 mm thickness

approx. 200 t/m² at 8 at 10 mm thickness

Elongation at break: at least 60% (DIN EN ISO 1798)

Kinetic friction coefficient μ: 0.81

Friction partners:

Wooden pallets, non-slip floor

(according to VDI 2700 Sheet 14)
