KRAITEC® step roof

The protective mat with PVC cladding for flat roofs

KRAITEC® step roof is a protective mat made of rubber granules with PVC cladding on the bottom that is used on flat roofs with PVC foil covering as a walkway for maintenance, inspection and installation.

KRAITEC® step roof is also used as a protective layer under roof structures (e.g. solar installations, antennas, ply separation, etc.). It features PVC non-woven cladding on the bottom as an integrated separating layer in case of incompatibility with the roofing felt.

The PVC cladding enables permanent bonding to the PVC roofing felt by means of hot-air welding to prevent lifting or slipping.



Technical Data:

Material: Polyurethane-bonded recycled tyre granulate with PVC cladding on the bottom

Area weight: approx. 21,1 kg/m² // approx. 5,3 kg / slab

Surface: smooth with open pores

Underside: PVC cladding with drainage channel

 Colours: red, green, grey or black

Tolerances: Length/width ± 1,5 %, thickness ± 2 mm

Dimensions:

Length x Width, Thickness:

500 mm x 500 mm, 30 mm

Fire resistance:

Efl (EN 13501-1)

Broof (t1) (DIN EN 13501-5)

Compression under traffic load:

10 % at approx. 18 t/m²

20 % at approx. 38 t/m²

(in accordance with DIN EN ISO 3386-2)

Further information:

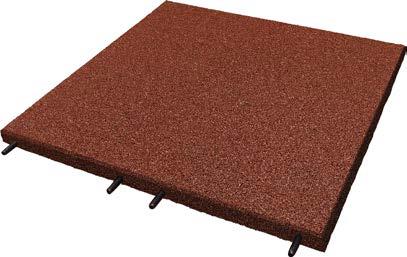

Pre-drilled holes on two sides of the slab, plastic connector pins

(pre-drilled holes on four sides of the slab on request)
