KRAITEC® step plus /step safe plus

The ideal solution for installation directly on PVC waterproofing

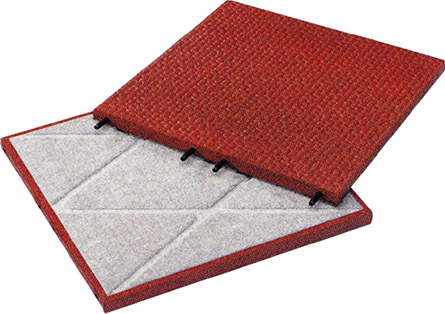

KRAITEC ® step plus and step safe plus incorporate geotextile laminate on their bottom side permitting installation dircetly on PCV waterproofing. KRAITEC ® step safe plus has a hammer-mark texturing on its upper surface for improved footing (certified R 10 anti-slip rating). This makes the rugged slabs ideal for home and garden applications.

            KRAITEC® step plus                                                                     KRAITEC® step safe plus



Application Examples

Walkaway slabs:

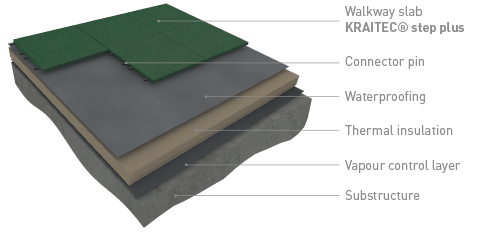

Flat roofs are often subjected to foot traffic, e. g. for maintenance or other work procedures. Installed directly over the waterproofing*, KRAITEC® step and step plus** walkways ideally protect the roof against physical damage. The slabs are easy to install due to their integrated connector pins and can be walked on immediately after installation.



* ensure chemical compatibility of material

**with geotextile laminate on the lower side as a separating layer to prevent migration between KRAITEC® step and e.g. a PVC waterproofing



Technische Data:

Material: Polyurethane-bonded recycled tyre granulate

Area weight: approx. 20.8 kg/m² (approx. 5.2 kg/slab)

Surface: open-pored and smooth / hammer-mark safety texturing

Underside:  smooth with drainage channels and geotextile  (PES, Polyester geotextile, 300 g/m²)

Colours: red, green, grey, black

Dimension tolerances:

Length and width ± 1.5%,

Thickness  ± 2.0 mm

Dimensions: 500 x 500 x 30 mm

Fire resistance:

Efl (DIN EN 13501-1)

Broof (t1) (DIN EN 13501-5)

Deformation under traffic load:

10% at approx. 18 t/m²

20% at approx. 38 t/m²

(test method based on DIN EN ISO 3386-2)

Packaging: 180 slabs per one-way pallet 105 x 105 cm

Weight: approx. 950 kg/pallet

Other: 4 integrated connector pins per slab
