KRAITEC® top


Structural protection - versatile and effective

KRAITEC® top is the versatile and effective protection mat for classical applications on flat roofs and building structures. Leading waterproofing manufacturers and installers worldwide work with this field-proven product. Its outstanding technical properties, high compressive strength and remarkable application versatility make KRAITEC® top the preferred protection mat for all classical flat roof systems.



KRAITEC® top is easy to install, highly cost-effective, durable, and extremely rugged and can be walked on immediately after installation. Whether used as temporary protection for work over easily damaged membranes or as a permanent component in flat roof systems, this classic product is at home over waterproofing systems worldwide.


Due to these and other benefits KRAITEC® top is the largest-selling structural protection mat of KRAIBURG RELASTEC.





Application Examples

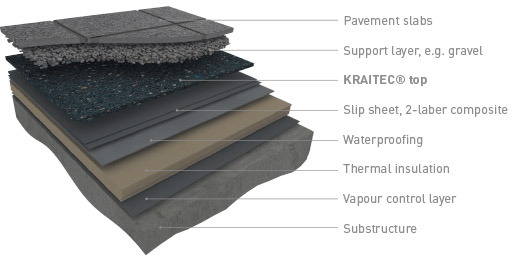

On flat roofs:

KRAITEC® top is the optimum protection mat for flat roofs supporting foot traffic or heavy objects. It is often used under gravel-topped roofs to prevent damage to the waterproofing by sharp or abrasive aggregates or by susequent maintenance work.

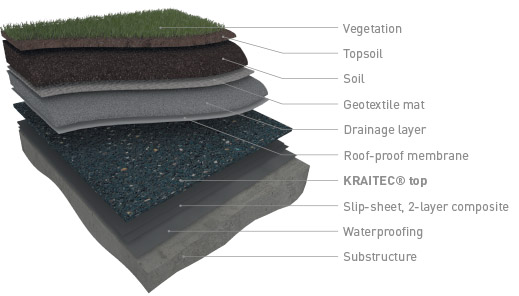

On landscaped roofs:

KRAITEC® top is used as a highly rugged and durable separator layer on landscaped roofs supporting foot traffic and auxiliary structures (e. g. over parking areas or green roofs). It protects the waterproofing system installed below against damage due to compressive loading.



On roof terraces:

KRAITEC® top plays an important part in construction of above-roof systems such as roof terraces. Installed directly below the terrace surfacing (e.g. concrete slabs or wood-planking*), it protects the waterproofing and roof below against puncture and other damage under high loads. In addition it serves as an equalizing and sound insulating layer.


*In applications without full-surface covering (e.g. installations under spaced-slat flooring or other noncontinuous surfacing), we recommend our odourless Kraitec® protect.

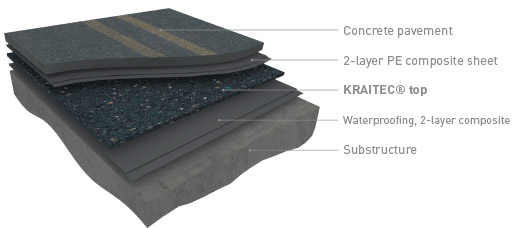

In parking garages:

KRAITEC® top enhances design safety when used as a component in waterproofed surfaces in urban parking facilities. Its outstanding properties increase the overall safety of the structural system.




Technical data:

Material: technical-grade recycled rubber granulate polyurethane-bonded

Density: approx. 900 kg/m³

Surface: grain-textured

Colour: black with multicoloured speckles


Dimension tolerances:

Length and width ± 1.5%,

Thickness 6, 8 and 10 mm ± 0.6 mm

Thickness 12, 15, 18 and 20 mm ± 1.0 mm

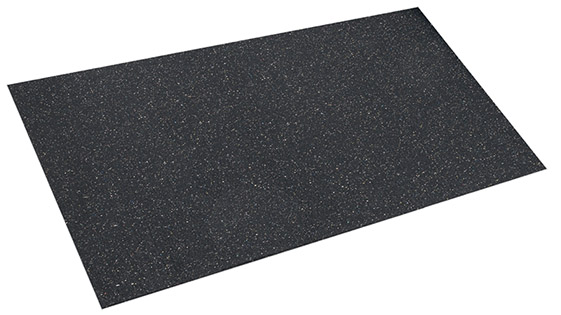

Dimensions mats:

1,000 x 2,000 mm  and 1,150 x 2,300 mm

Thickness (1): 6, 8, 10, 12, 15, 18, 20 mm

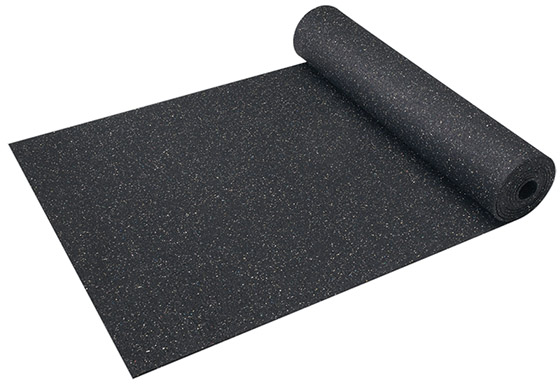

Dimension roll-form:

1,250 mm x length (dependent on material thickness)

Thickness(1): 6, 8, 10, 12, 15, 18, 20 mm


Tensile strength: approx. 0.3 N/mm² (DIN EN ISO 1798)

Elongation at break: approx. 40% (DIN EN ISO 1798)


Puncture resistance:

Drop heigth for 6mm mat = 800 mm

Drop heigth for 8 mm mat = 1,000 mm

Drop heigth for 10 mm mat = 1,300 mm

(SIA 280)


Fire resistance: Efl (DIN EN 13501-1)

Thermal resistance: -30° to + 80° C


Deformation under traffic load:

10% at approx. 40 t/m²

20% at approx. 90 t/m²

(test method based on DIN EN ISO 3386-2)


Coefficient of thermal expansion: approx. 10 x 10 ^-5 / °C (in Anlehnung der DIN EN 13471)

Sonstiges:conditionally resistant to acids and bases, water-resistant, rot-resistant, must be protected from constant exposure to UV radiation


(1) additional thicknesses on request
