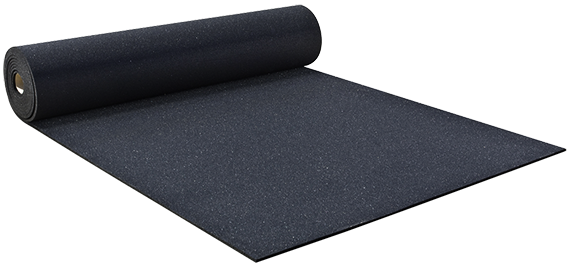

DAMTEC® vibra-supreme

Extremely hard decoupling mat made from high-quality rubber granules

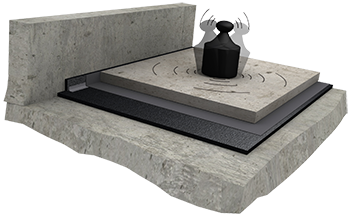

DAMTEC^® vibra supreme is a extremely hard insulation material made from high-quality recycled rubber. Its upper and lower sides are smooth. DAMTEC^® vibra supreme is used in applications supporting very heavy weights, i.e. compressive stresses greater than 1,00 N/mm².

f₀ ≥ 10,0 Hz
Average compressive stress
≥ 1,0 N/mm²

The natural frequency f₀ is dependent on the product thickness and the weight supported.

Combined systems (e.g. single, two or even three layers) are possible.

Technical data:

Material:	Fine granules of recycled rubber and rubber foam with a PU elastomer bonding agent
Colour:	black
Surface:	granule structure
Density:	approx. 1000 - 1100 kg/m³
Tolerances:	Length and width ± 1.5%, thickness ± 1.0 mm
Dimensions:	Roll width: 1,250 mm thickness mm/length m 5/8, 10/6
Tensile strength:	approx. 1,0 N/mm² (ISO 1798)
Elongation at break:	approx. 30% (ISO 1798)
Temperature resistance:	-30° to 80°C
Fire resistance:	Efl (ISO 11925/ EN 13501-1)
Maximum pressure:	2,00 N/mm² (according to EN 826)
Short peaks:	approx. 50% deflection at 4,00 N/mm²

Further characteristic values and details on request.
