DAMTEC® vibra-hard
Semi-hard decoupling mat made from cellular rubber and recycled rubber granules

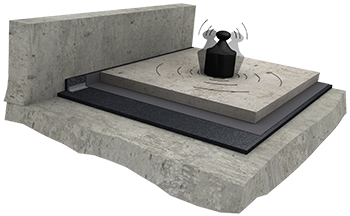

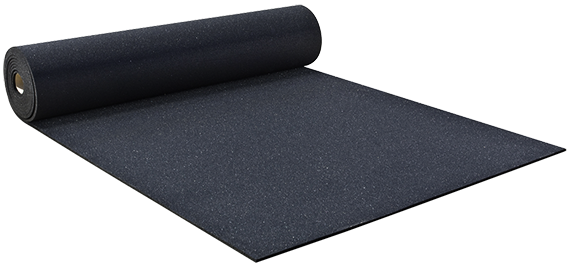

DAMTEC® vibra hard is a semi-hard insulation material made from a blend of fine-grained recycled cellular rubber and high-quality recycled rubber. Its upper and lower sides are smooth. DAMTEC® vibra hard is used in applications supporting heavy weights, i.e. compressive stresses ranging from 0.20 N/mm² to 0.30 N/mm².
 |
f₀ ≥ 10,5 Hz Average compressive stress ≤ 0.3 N/mm²
The natural frequency f₀ is dependent on the product thickness and the weight supported.Combined systems (e.g. single, two or even three layers) are possible. |
 |
 |
Technical data:
|
Material: |
Fine granules of recycled rubber and rubber foam with a PU elastomer bonding agent |
|
Colour: |
black/anthracite |
|
Surface: |
granule structure |
|
Density: |
approx. 600 - 700 kg/m³ |
|
Tolerances: |
Length and width ± 1.5%, thickness ± 1.0 mm |
|
Dimensions: |
Roll width: 1,250 mm thickness mm/length m: 5/8, 10/6, 12,5/1, 20/1 |
|
Tensile strength: |
approx. 0.6 N/mm² (ISO 1798) |
|
Elongation at break: |
approx. 60% (ISO 1798) |
|
Temperature resistance: |
-30° bis 80°C |
|
Fire resistance: |
Efl (ISO 11925/ EN 13501-1) |
|
Maximum pressure: |
0.30 N/mm² (according to EN 826) |
|
Short peak: |
approx. 50% deflection at 0.70 N/mm² |
Further characteristic values and details on request.
