DAMTEC® system
Premium insulating padding for concrete or wooden subfloors

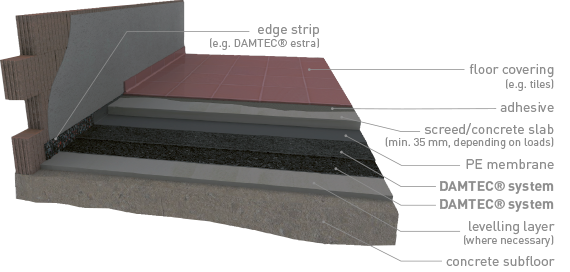

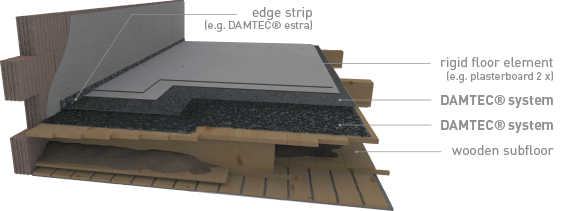

DAMTEC® system is the premium insulating padding for concrete or wooden subfloors. It provides outstanding impact sound deadening properties under screed or rigid floor elements. DAMTEC® system is characterized by a very low dynamic stiffness. Its special design and granular-textured surface ensure superior acoustic insulation especially in the low frequency range, the most difficult part of impact sound insulation. DAMTEC® system is ideal for use on wooden subfloors in combination with flooring of various types, generating high market demand particularly in the refurbishment sector.
 |
ETA - 13/0375 |
 |
 |
Technical data:
|
Material: |
Two-layer compound with rubber granules and rubber mat with PU elastomer bonding agent |
|
Colour: |
black |
|
Upper side: |
open granules |
|
Lower side: |
smooth with fine granular texture |
|
Area weight: |
2,600 - 3,600 g/m² |
|
Tolerances: |
Length and width ± 1.5%, Thickness ± 0.3 mm |
|

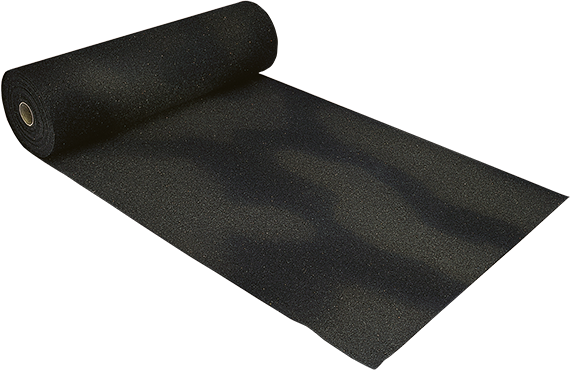

Dimensions: |
Roll width: 1,000 mm Thickness: approx. 6 mm Roll length: 10,000 mm |
|
Tensile strength: |
approx. 0.6 N/mm² (ISO 1798) |
|
Elongation at break: |
approx. 40% (ISO 1798) |
|
Heat transmission coefficient: |
0.07 m² K/W with one layer (DIN 53612) |
|
Heat transfer coefficient: |
14 W/m² K |
|
Heat conductivity: |
0.09 W/mK |
|
Impact sound improvement: |
(ISO 140‐8/ISO 717‐2)
ΔLw = 23 dB 1-layer under screed |
|
Impact sound level: |
(ISO 140‐8/ISO 717‐2) Ln,w = 42 dB on wooden floor |
|
Other: |
DAMTEC® system meets the demands of AgBB scheme and is suitable for use in interior of buildings. (test report no. 155033, ihd Dresden) |
