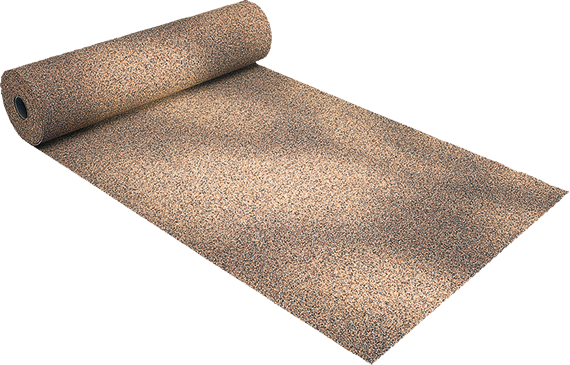

DAMTEC® resistant cork / resistant cork G
Flame-retardant acoustic underlay
Whenever the acoustic underlay must comply with high requirements of the structural fire protection (B1, Cfl-s1), then DAMTEC® resistant cork is the ideal acoustic underlay, suitable for residential and commercial buildings. With its special selection of raw materials, DAMTEC® resistant cork is of low flammability. It can be laid under parquetry and laminated floor, under textile floors as well as ceramic tiles. For the application under PVC and linoleum we recom-mend DAMTEC® resistant cork G, which is grinded on one side.
VOC-emissions:
DAMTEC® resistant cork meets the requirements of German eco-label "Der Blaue Engel"
Technical data:
Material:
Granules of special recycled rubber and cork with PU elastomer bonding agent
Colours:
multi-coloured (rubber), beige (cork)
Surface:
granular texture
Density:
approx. 600 kg/m³
Tolerances:
Length and width ± 1.5%, Thickness ± 0.3 mm
Dimensions:
Roll width: 1,250 mm
Thicknesses: 2, 3, 4, 5, 6 mm
Roll length: on request
Tensile strength:
approx. 0.6 N/mm² (ISO 1798)
Elongation at break:
approx. 10% (ISO 1798)
Temperature resistance:
-30° bis 80°C
Fire resistance:
Cfl-s1 (ISO 9239/ EN 13501-1)
Heat transmission coefficient:
0.03 m² K/W for 3 mm slab (ISO 8302)
Impact sound improvement:
(ISO 140‐8/ISO 717‐2)
ΔLw = 17 dB under 2mm PVC flooring
ΔLw = under textile flooring
