SPORTEC® team cup

Soccer application -  new generation

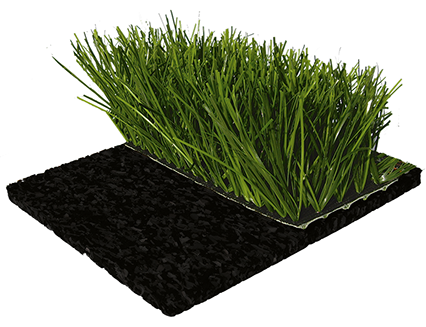

SPORTEC^® team cup is reliable as a turf substructure for different types of artificial turf. As ready-made rolls, it is the alternative to conventional elastic and granule substructures with filled artificial turf. SPORTEC^® team cup is enduring, load-carrying and uncomplicated: it is loose laid under artificial turf systems so that the turf layer can be exchanged without any problems.

Its specially developed formulation ensures fulfilment of DIN requirements for stress relaxation, ball rebound, drainage capacity and environmental compatibility (see DIN V 18035-7). A special compound of high performance rubber granules makes SPORTEC^® team cup an innovative substructure for artificial turf fields. The special composition means good ball rebound, outstanding force reduction and good drainage.

Properties at a glance:

Long service life Simple to install and exchange Loose laid Permeable to water



---

Technical data:

Material:	A mixture of black recycling rubber granules bonded with polyurethane elastomer
Surface:	granule structure
Colour:	black
Tolerances:	Length and width ± 1.5%, thickness ± 0.3 mm
Dimensions:	Roll width / Thickness / roll length / roll width 10 mm (1) / 35 m / 1.25 m
Volumetric weight:	approx. 650 kg/m³
Elongation at break:	approx. 40% (EN ISO 1798)
Tensile strength:	approx. 0.2 N/mm² (EN ISO 1798)
Water permeability:	4,500 cm/h (EN 12616)

(1) Other thicknesses on request
