SPORTEC® easy track



The surfacing solution for temporary track-and-field facilities

SPORTEC® easy track is a portable temporary sports track surfacing for outdoor warm-up areas and event locations. SPORTEC® easy track can be installed over solid or granular subsurfaces.


Equally well suited for indoor applications, SPORTEC® easy track provides ideal temporary or seasonal surfacing on sports floors to prevent damage by spiked shoes in winter months. It is avail-able with a geotextile layer on lower side for protection of damage-sensitive subsurfaces.

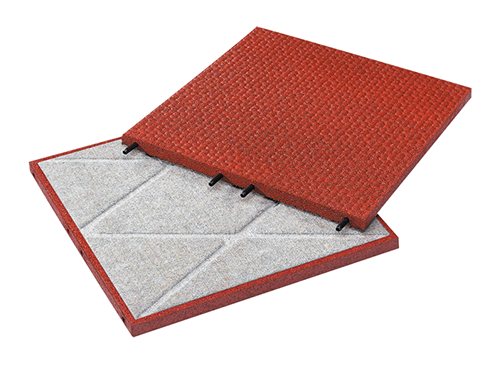

SPORTEC® easy track is tested according to the IAAF specifications for track and field facilities and provides other unbeatable benefits including simple installation, fast removal and easy stackability and storage when not in use. Installation does not require specially trained personnel nor does it require special equipment. Convenient connector pins ensure fast installation and secure placement.


Technical data:

Material: polyurethane-bonded recycled tyre rubber granules

Surface: grain-structure

Lower side: smooth with drainage channels

Geotextile mat: polyester geotextile mat (on request)

Colour (1): red-brown

Tolerances: Length, width and thickness ± 0.3 mm

Dimensions:

Thickness / length / width

30 mm / 500 mm / 500 mm


Area weight: approx. 28 kg/m²

Tensile strength: approx. 0.75 N/mm²

Elongation at break: approx. 70% (EN ISO 1798)

Wear resistance: rV 5,9 (DIN 18035 Teil 6)

Fire resistance: Efl (B2) (EN 13501-1)

Cold fracture resistance : 24 h /-40°C, no fractures

Cold crack resistance: 5 h /-30°C, no cracks


(1) Slight material-related colour variations possible.
