SPORTEC® standard / trend / premium

The ideal underlay — available in various shock absorption classes and price categories

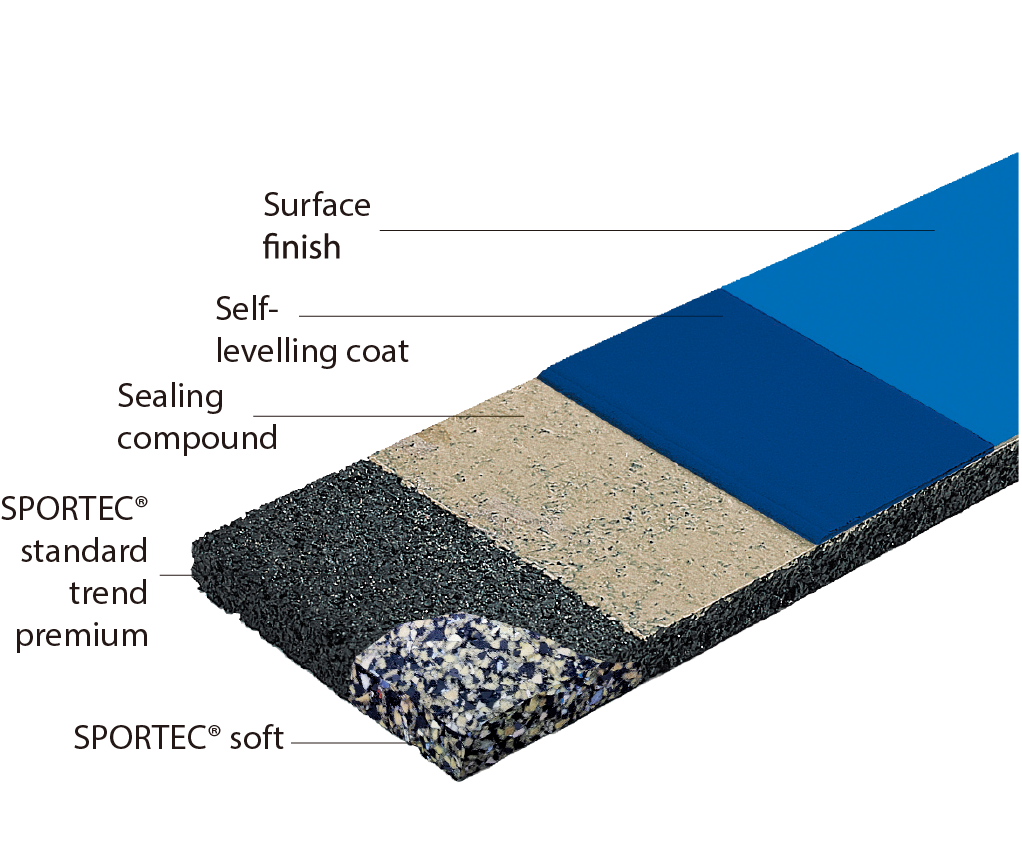

SPORTEC^® standard is a widely used elastic layer for sports and multi-purpose facilities where volleyball, hand ball, basket ball, badminton and tennis are played. Sports floors with an integrated SPORTEC^® standard layer are hard-wearing, improve safety and help prevent damage to joints. SPORTEC^® trend has been developed on the basis of our all-rounder SPORTEC^® standard. The elastic layer consists of a well-balanced combination of closed-cell rubber made from recycled material and fine-grain ­recycled rubber tyre granules and offers improved shock absorption compared with the standard product. This enhanced elastic layer therefore offers unrivalled flexibility and excellent ball rebound properties, and is easy to install. The SPORTEC^® ­premium ­elastic layer is made from recycled closed-cell rubber and recycled rubber tyre granules. It has been ­designed for ­exceptionally high shock absorption without exceeding the maximum permissible deformation limits (according to EN 14904). SPORTEC^® ­premium therefore offers optimum protection for joints and minimises the risk of injury, which makes it the ideal solution for school sports facilities, leisure centres and multi-purpose sports complexes.

SPORTEC^® soft is a special mix of fine-grain recycled cellular rubber granules and rubber fibres and has been specially developed as a high performance elastic layer for spike resistant systems. SPORTEC^® soft also offers unrivalled shock absorption properties helping to achieve Grade 2 performance levels according to norm EN 14904.

Properties and benefits at a glance:

Made from recycled rubber Excellent noise absorption properties Water-repellent Good to very good ball rebound properties Uniform elasticity across the floor Suitable for underfloor heating



---

Technical data:

Material:	fine-grain recycled rubber tyre granules, PU-elastomer bonded (trend and premium with additional closed-cell recycled rubber) soft: Mix of fine-grain recycled cellular rubber granules and rubber fibres)
Colour:	black, (soft: multicoloured)
Tolerances:	Length and width ± 1.5%, thickness ± 0.3 mm
Dimensions:	Roll length m/ thickness mm soft: 15/9, 15/10, 15/12, 15/14 ;  trend,premium, standard: 40/3, 30/4, 24/5, 20/6, 17/7, 15/8, 13/9, 12/10, 10/12, 9/14(2) (40/3 for SPORTEC® standard only)
Volumetric weight:	SPORTEC® standard: approx. 770 kg/m³ SPORTEC® trend: approx. 700 kg/m³ SPORTEC® premium: approx. 600 kg/m³ SPORTEC® soft: approx. 560 kg/m³
Tensile strength:	approx. 0.6 N/mm² (EN ISO 1798) trend, premium and soft approx. 0.3 N/mm²
Elongation at break:	approx. 60% (50 % soft) (EN ISO 1798)
