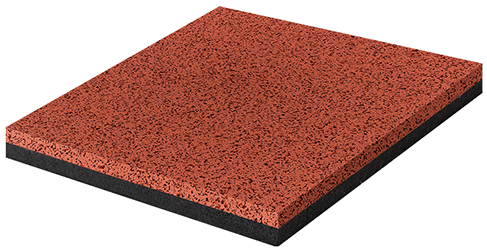

SPORTEC® UNI sandwich classic
Preventing injury and damage to joints in indoor sports facilities
SPORTEC® UNI sandwich classic consists of a technically advanced elastic layer made from SPORTEC® standard material and a tried and tested SPORTEC® UNI classic floor covering. This combination prevents damage to joints and other injuries and is therefore particularly recommended for indoor sports facilities in schools, leisure centres and multi-purpose buildings.
Both the elastic layer and the floor covering are supplied in rolls. The two layers are however installed separately.
First, the elastic layer is glued to the substructure. After the adhesive has fully cured, the floor covering is glued to the elastic layer.
red
|
dark grey |
green |
blue |
beige |
|
Material: |
Top layer: Fine-grain EPDM colour granules, PU-elastomer bonded Elastic layer: Fine-grain recycled rubber tyre granules PU-elastomer bonded |
|
Colours (1): |
Top layer: dark grey, red, blue, green, beige (2) Elastic layer: black |
|
Tolerances: |
Length and width ± 1.5%, thickness ± 0.3 mm |
|
Dimensions top layer: |
Thickness / roll length / roll width 4 mm / 30 m / 1.25 m |
|
Dimension elastic layer: |
Thickness / roll length / roll width 4 mm (3) / standard lengths (4) / 1.5 m |
|
Compression load (5): |
0.7 N/mm² (EN 12230) |
|
Elongation at break (5): |
59% (EN 12230) |
|
Wear resistance (5): |
2.9 g (ISO 5470-1) |
|
Colour fastness (5): |
4 (ISO 105-A02) |
|
Friction (dry/wet) (5): |
101/56 (EN 13036-4) |
|
Vertical deformation (5): |
0.6 (EN 14809) |
|
Ball rebound properties (5): |
100% (EN 14877) |
(1) Slight material-related colour variations possible.
(2) Other colours on request
(3) Other thicknesses on request
(4) Other lengths on request
(5) According to EN 14877 for UNI sandwich classic of thickness 4+4 mm
