DAMTEC® wave 3D
Excellent Acoustic insulation dimple textured underlays under floating screed, cement screed and wood subfloors

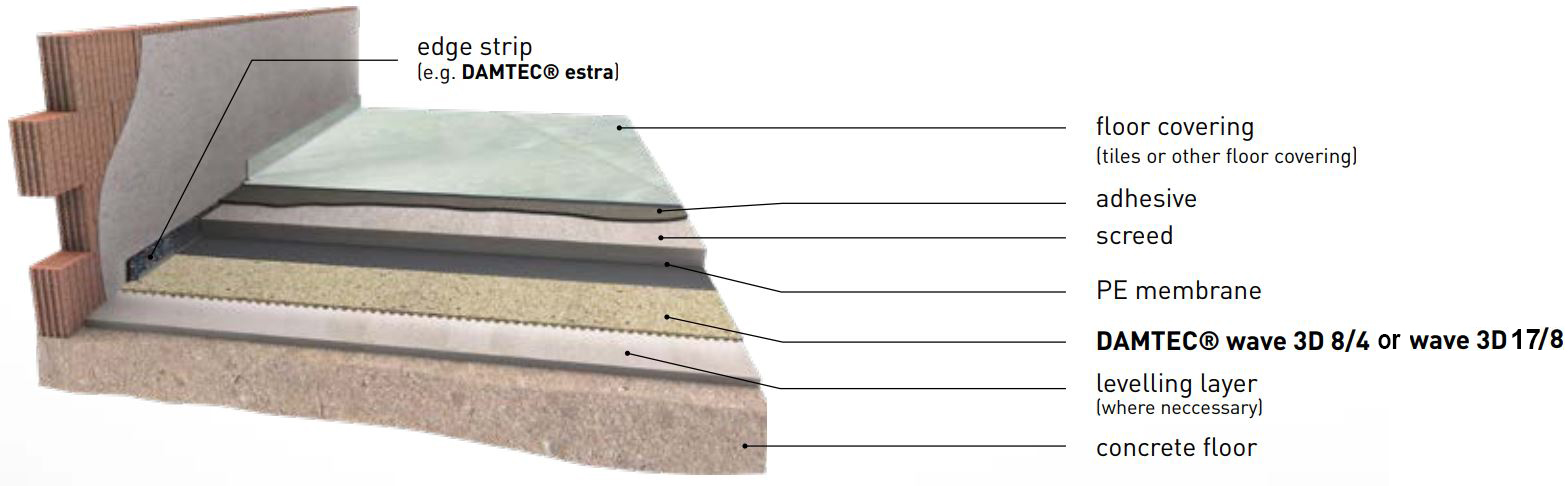

DAMTEC® wave 3D is the ideal rubber underlay under floating screed /concrete slab or underneath rigid floor elements on wooden subfloors, providing outstanding elasticity and extremely high resistance to compressive loads. There are 2 thickness for your selection: 8/4mm (impact sound improvement: ≤30dB) or 17/8mm (impact sound improvement: ≤39dB) . DAMTEC® wave3D provides a wide range of benefits under screed or rigid floor elements including long service life and superb strength.
ETA - 13/0572
 |
 |
Technical data:
|
Material: |
Granules of recycled rubber with PU elastomer bonding agent |
|
Colour: |
beige / brown |
|
Surface: |
granular texture |
|
Underside: |
wave cut |
|
Density: |
300 - 400 kg/m³ |
|
Area weight: |
8/4: 1.50 - 2.8 kg/m²; 17/8: 3.45 - 5.49 kg/m²; |
|
Tolerances: |
Length and width ± 1,5%, Thickness ± 1,0 mm |
|
Dimensions: |
Roll width: 1.250 mm Thickness: 8/4 mm or 17/8 mm Roll length: on request |
|
Tensile strength: |
approx. 0.4 N/mm² (ISO 1798) |
|
Elongation at break: |
ca. 40% (ISO 1798) |
|
Temperature resistance: |
-30° to 80°C |
|
Fire resistance: |
(EN 13501‐1) Efl |
|
Heat transmission coefficient: |
17/8: 0.275 m² K/W (EN 12667) |
|
Dynamic stiffness: |
(EN 29052) 8/4 mm < 19 MN/m³
17/8 mm < 8 MN/m³ |
|
Impact sound improvement: |
(ISO 140‐8) ΔLw = 25 dB at 8/4 mm (under 50mm screed) ΔLw = 30 dB at 8/4 mm (under 80mm screed) ΔLw = 32 dB at 17/8 mm (under 50mm screed)
ΔLw = 35 dB at 17/8 mm (under 80mm screed) |
